# Pairing Hideez Key with Windows

Hideez Key –  Pairing with Windows

Hideez Key devices support passwordless authentication stadards developed by the FIDO Alliance: [FIDO U2F and FIDO2](https://fidoalliance.org/specifications/). You can pair Hideez Key with any devices supporting FIDO Security Keys, including computers running Windows 10/11, Android (version 7.0+) or iOS (version 13.3+) devices.

Services that support these standards include Google, Facebook, Twitter, and Dropbox, and [other](https://hideez.com/pages/supported-services).

{% hint style="warning" %}
For successful pairing of the Hideez Key, you will need a Windows 10, OS build 1840, or later. For earlier versions, the correct operation of the device is not guaranteed. \
[How to find out which version of Windows your device is running.](https://support.microsoft.com/en-us/help/13443/windows-which-version-am-i-running)
{% endhint %}

You can pair [Hideez Key 3](https://hideez.com/products/hideez-key-3) and [Hideez Key 4](https://hideez.com/products/hideez-key-4) devices to your Windows PC with the following steps:

### **Pairing FIDO security keys with Windows 10‌-11**

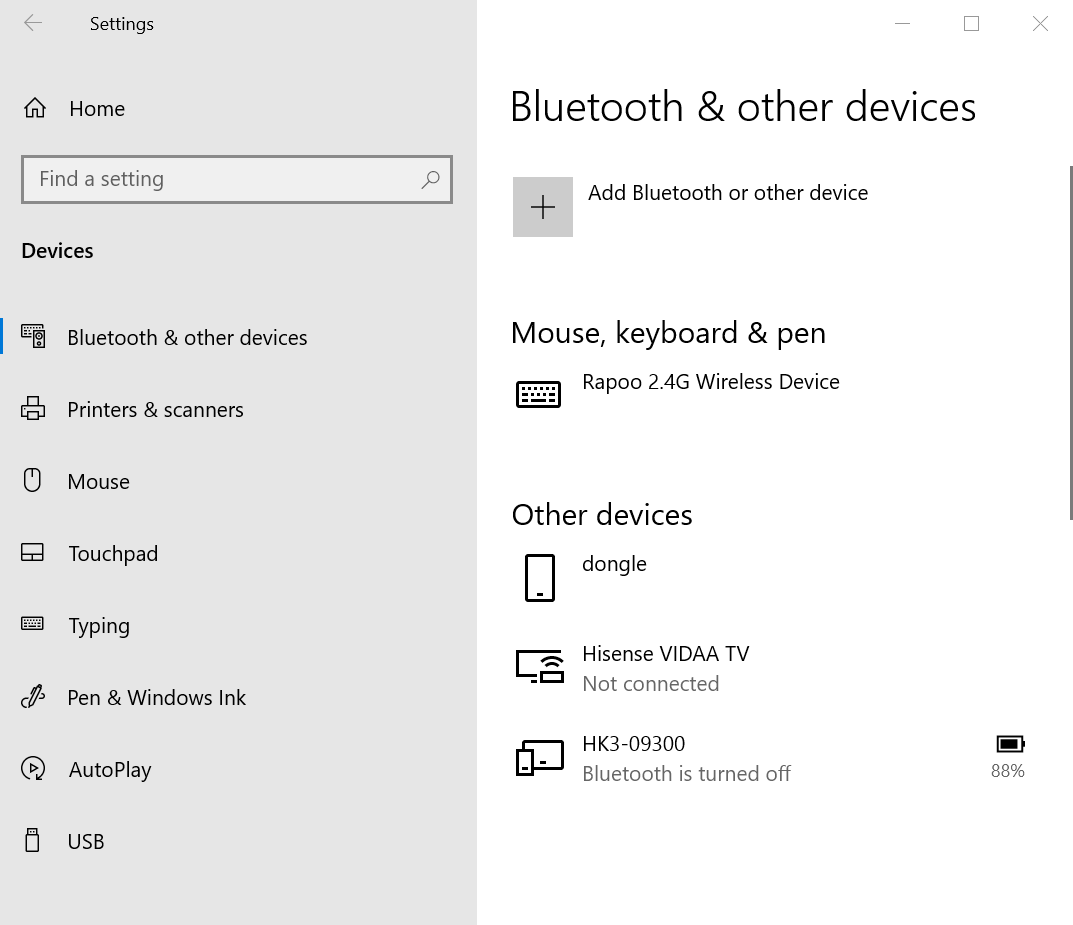

1. Select **Start** > **Settings** > **Devices** > **Bluetooth & other devices**.\
   &#x20;&#x20;

   <figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/m3aXtkQgczePB0dEUDdB/%D0%B8%D0%B7%D0%BE%D0%B1%D1%80%D0%B0%D0%B6%D0%B5%D0%BD%D0%B8%D0%B5_2021-09-21_124913.png" alt=""><figcaption></figcaption></figure>
2. Press (short press) the button on the Hideez Key device.

After you press a device button, a blue LED lights up - three long flashes of variable brightness, which means that the device is ready for Pairing.<br>

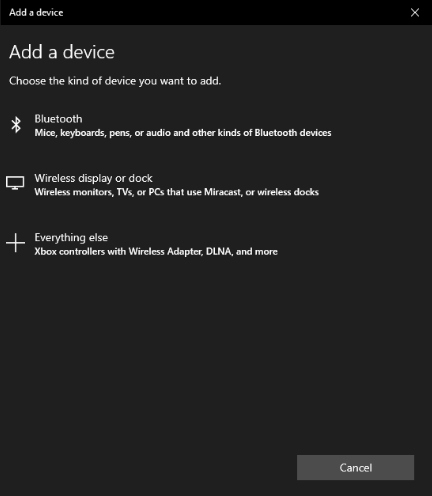

3. Click **Add Bluetooth or other devices > Bluetooth** on the Windows screen.\
   &#x20; &#x20;

   <figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/TxzpVjLAJk3FRBrjxIca/Screenshot_2.png" alt=""><figcaption></figcaption></figure>

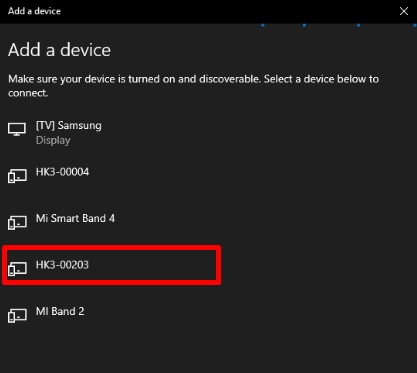

4. Select your Hideez Key device (for example HK-00203). The last five digits should coincide with the serial number printed on the device box.\
   &#x20;&#x20;

   <figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/3rCbxTLnhRXI8z662BVn/%D0%B8%D0%B7%D0%BE%D0%B1%D1%80%D0%B0%D0%B6%D0%B5%D0%BD%D0%B8%D0%B5_2021-09-21_125034.png" alt=""><figcaption></figcaption></figure>
5. After the connection is established, the green LED lights up (blinks) on the selected device, inviting you to confirm the operation. You need to confirm pairing with a short button press. \
   If you don’t confirm the operation within 15 seconds, there will be no pairing and the LED on the device will stop blinking. \
   &#x20;<br>

{% embed url="<https://youtu.be/iBaGqvRmLmA>" %}

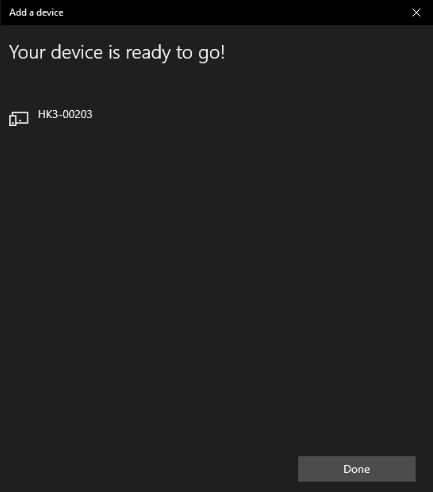

6. Successful pairing is confirmed by the inscription «Your device is ready to go».

&#x20;

<figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/vXxY9jggAaHOZSKgv9Qb/%D0%B8%D0%B7%D0%BE%D0%B1%D1%80%D0%B0%D0%B6%D0%B5%D0%BD%D0%B8%D0%B5_2021-09-23_005601.png" alt=""><figcaption></figcaption></figure>

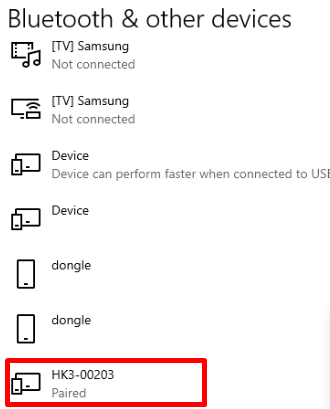

7. In the Bluetooth & other devices section, a new HK4-00203 device appears.\
   &#x20;&#x20;

<figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/NauuEj947KAKqASYszDZ/%D0%B8%D0%B7%D0%BE%D0%B1%D1%80%D0%B0%D0%B6%D0%B5%D0%BD%D0%B8%D0%B5_2021-09-23_005618.png" alt=""><figcaption></figcaption></figure>

### **Creating a PIN code on a Hideez Key device**

{% hint style="info" %}
The PIN code created for Secure Device for Windows (FIDO) may differ from the PIN code in Hideez Client.
{% endhint %}

Windows uses another technology to securely store, transfer, and verify the PIN code.

1. Select **Start** > **Windows Settings** > **Account** > **Sign-in options** > **Security Key** > **Manage**

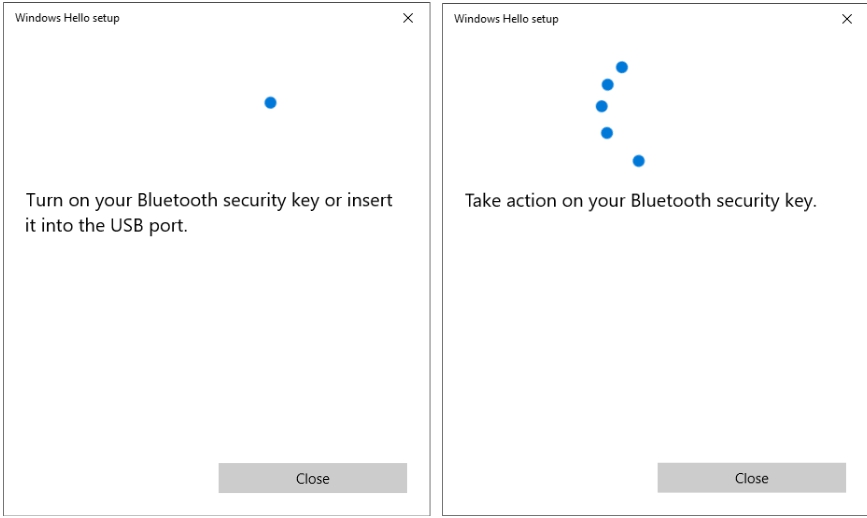

2. After clicking on the **Manage** button, the Hideez Key will require confirmation of this operation with a short press on the button. If you don’t confirm it in 20 seconds, Windows reports the problem and restarts the operation. \
   &#x20; <br>

   <figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/4uk6jeN3jXfDKYyfEFDK/8.jpg" alt=""><figcaption></figcaption></figure>

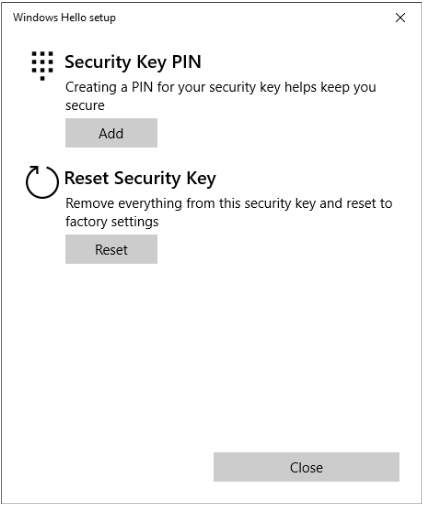

3. A "Windows Hello setup" window appears with the menu "Add Security Key PIN" and "Reset Security Key". \
   &#x20; <br>

   <figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/aYZqGcDzVBulJ7CVMI3p/9.jpg" alt=""><figcaption></figcaption></figure>

{% embed url="<https://youtu.be/baczWo7j73M>" %}

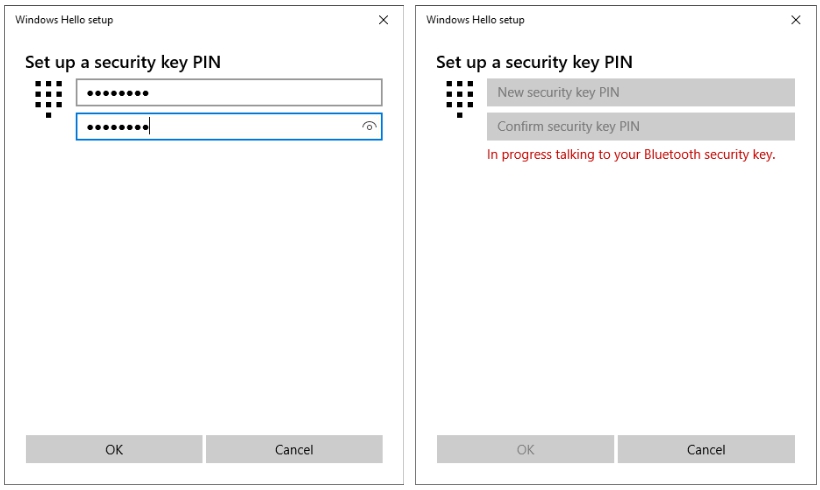

4. Select “Add PIN to Security Key” and enter the same PIN code containing 4 to 32 digits twice.\
   &#x20;&#x20;

   <figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/v8zom29jOv7OWuSyB7TK/10.jpg" alt=""><figcaption></figcaption></figure>

### **‌Changing PIN code for FIDO technology**

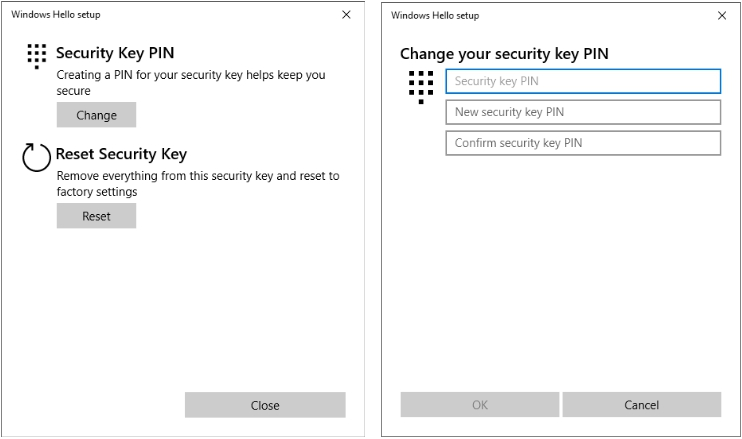

Go to the “Windows Hello setup” section and select “Change Security Key PIN” to change the PIN code. Next, you need to type your old PIN followed by a new one (twice) and click “OK”.\
&#x20;&#x20;

<figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/dFIQj0f22fnl1ZoiJp4S/%D0%B8%D0%B7%D0%BE%D0%B1%D1%80%D0%B0%D0%B6%D0%B5%D0%BD%D0%B8%D0%B5_2021-09-21_125409.png" alt=""><figcaption></figcaption></figure>

### **Removing PIN code and clearing all FIDO data**

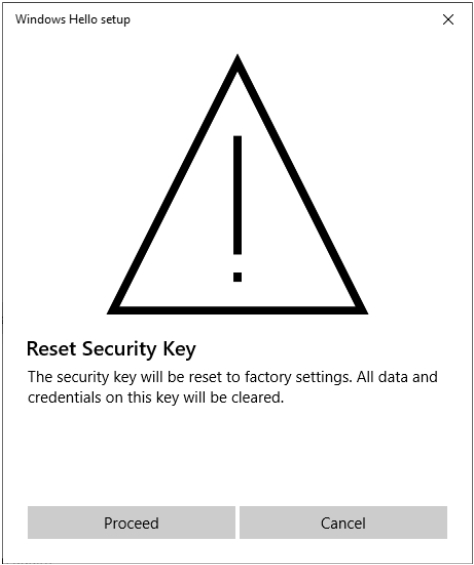

1. Enter the “Windows Hello setup” section and select “Reset Security Key” and then “Proceed” to remove the PIN code and FIDO data. \
   &#x20;&#x20;

   <figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/iQP7vepGCLixRay69nVV/%D0%B8%D0%B7%D0%BE%D0%B1%D1%80%D0%B0%D0%B6%D0%B5%D0%BD%D0%B8%D0%B5_2021-09-21_125423.png" alt=""><figcaption></figcaption></figure>

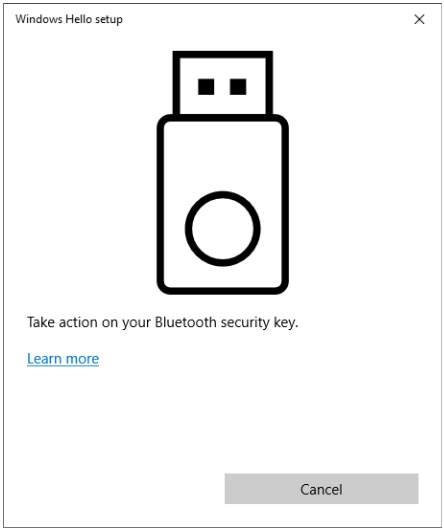

2. Each time the message “Take action on your Bluetooth security key” appears, confirm it with a short press. This action must be confirmed twice.

{% embed url="<https://youtu.be/baczWo7j73M>" %}

<figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/FVaMUoAsocrhlMdNdC59/%D0%B8%D0%B7%D0%BE%D0%B1%D1%80%D0%B0%D0%B6%D0%B5%D0%BD%D0%B8%D0%B5_2021-09-21_125600.png" alt=""><figcaption></figcaption></figure>

3. The success of the operation is signaled by the message “Reset Complete”. After that, all data associated with FIDO (PIN, accounts) will be removed.\
   &#x20;&#x20;

<figure><img src="https://content.gitbook.com/content/yySSunF8lTBEbKNJWiGw/blobs/GY276MdvayAldKb7xUXe/%D0%B8%D0%B7%D0%BE%D0%B1%D1%80%D0%B0%D0%B6%D0%B5%D0%BD%D0%B8%D0%B5_2021-09-21_125517.png" alt=""><figcaption></figcaption></figure>

After the Hideez Key has been successfully paired with your computer, you can proceed to [setting up a passwordless login](/passwordless-sign-in-and-2fa/setting-up-passwordless-logins-and-2fa.md) to the desired accounts.

{% hint style="info" %}
After pairing you can also set up the [proximity lock](/guide-for-hideez-key/proximity-lock.md) and [unlock](/guide-for-hideez-key/proximity-unlock.md) options (without the dongle).
{% endhint %}
