# Hideez Client Interface & Main Settings

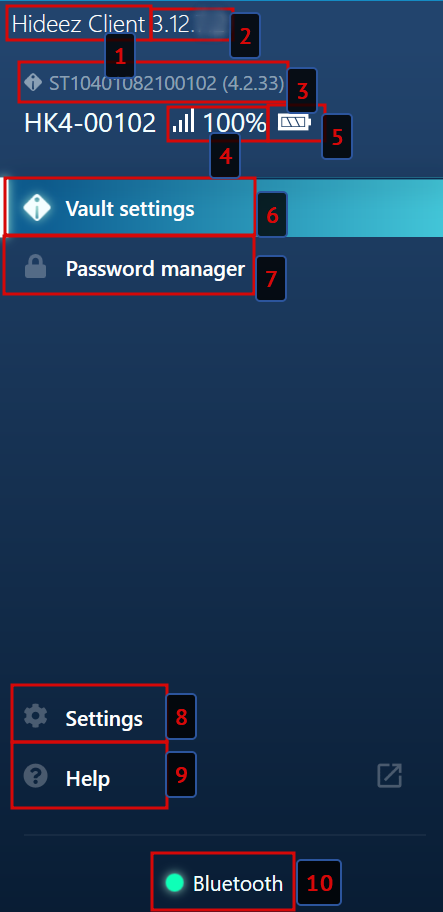

The left panel is as follows:

<figure><img src="/files/Mzo31lEwiBSDMyzBTdiY" alt=""><figcaption></figcaption></figure>

* Application name (1) and version (2)
* Hideez key serial number and firmware version (3)
* Bluetooth signal strength (4) (as the distance from the computer to the Hideez key increases, the value decreases)
* Battery level (5) (hover to display)
* Vault settings – menu item for displaying basic settings (6)
* Password Manager – a menu item for the password management (7)
* Settings – menu item for general settings (8)
* Help –– link to the documentation portal (9)
* Bluetooth Indicator (10)

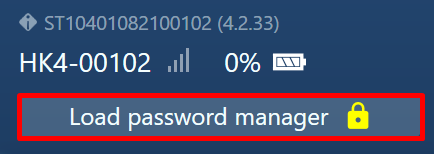

You can see such button:

<figure><img src="/files/15kGPPIqfkjNKfZPwmnJ" alt=""><figcaption></figcaption></figure>

It means that the authorization procedure for accessing the data stored on the key failed. Another indication is the red "Authorized" indicator. In this case, the **Password Manager** menu section will not be displayed.

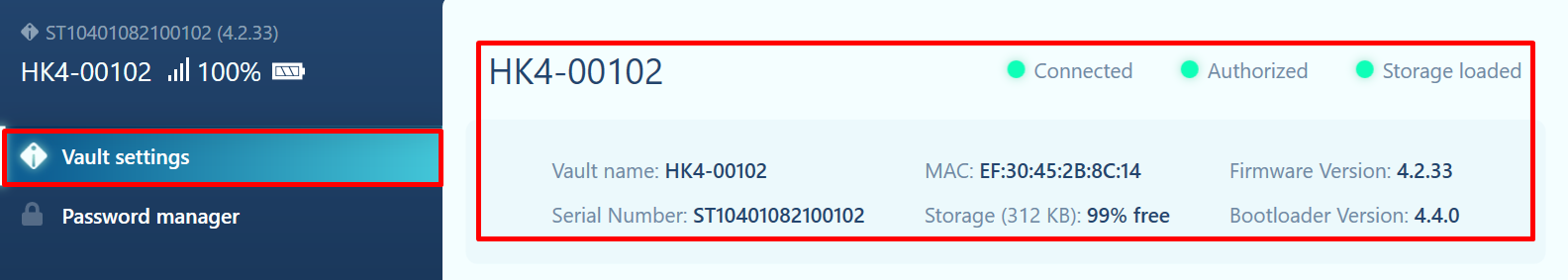

### Vault settings

<figure><img src="/files/PAW3YbFzEjwIWHbS131O" alt=""><figcaption></figcaption></figure>

Basic information about Hideez Key is displayed:&#x20;

* Hideez Key name&#x20;
* Serial number&#x20;
* MAC address&#x20;
* % free storage space (accounts are stored in dedicated storage 80KB)&#x20;
* Firmware version&#x20;
* Bootloader version

Indicators:&#x20;

* **Connected** – connection between Hideez Key and the User's endpoint. A green light means a connection is established, a red light means there is no connection. To establish a connection, the Hideez Key must be kept within the range of the PC Bluetooth connection and paired with the PC via Bluetooth.
* **Authorized** – a secure channel has been established between the application and Hideez Key.&#x20;
* **Storage loaded** – the status of data load from the key. The green indicator means that the key is authorized, the data is uploaded and the **Password manager** menu item is available. A red indicator means that the key cannot pass authorization.

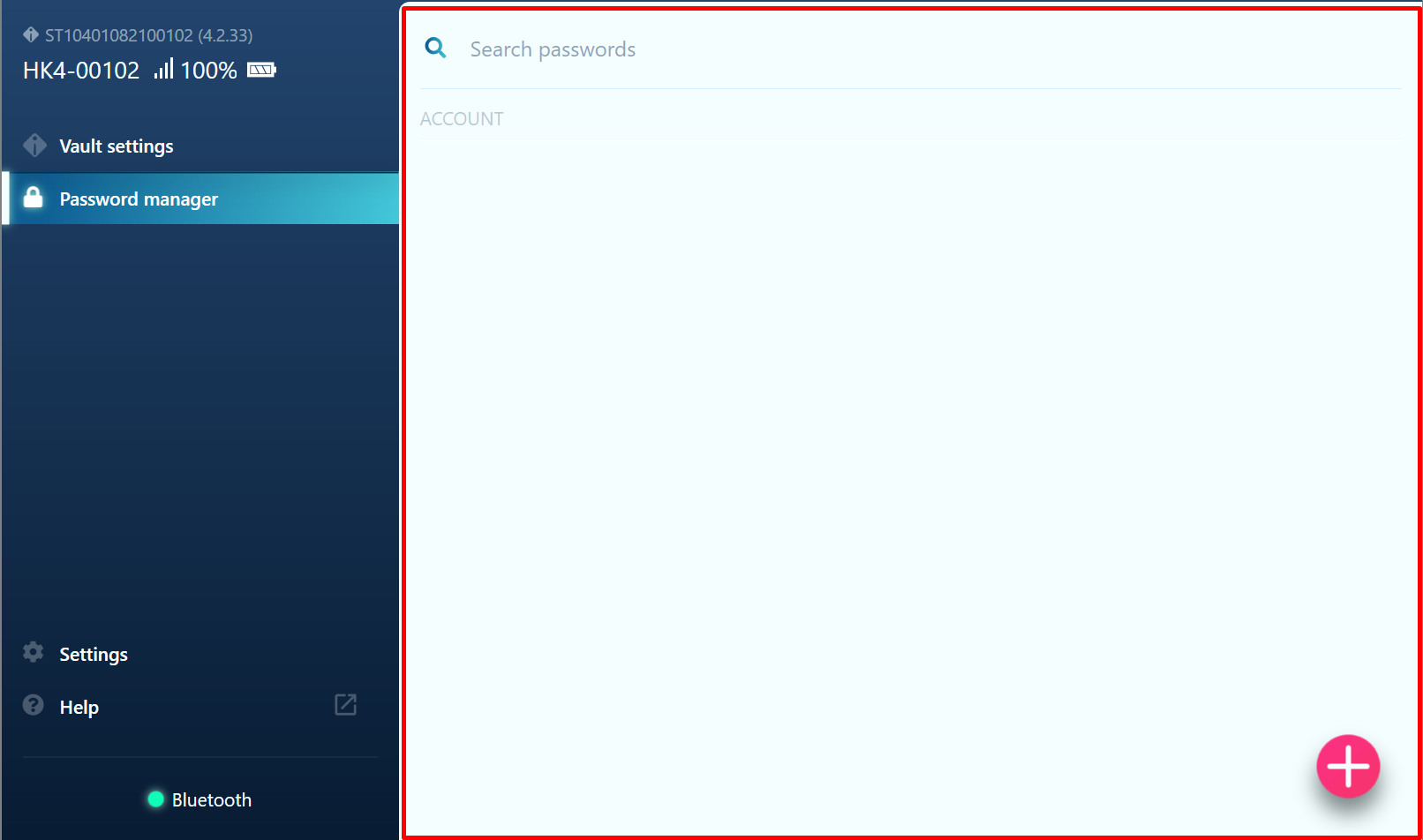

### **Password manager**

<figure><img src="/files/lGSiWrBww8sjkolXU0DJ" alt=""><figcaption></figcaption></figure>

Information about all user accounts (account name and login) is displayed. Use the search by account name and login to quickly find the desired account.&#x20;

Unlock accounts are marked with a corresponding icon in the general list of accounts - <img src="/files/-Mg4oAXuvbotTtqMUBua" alt="" data-size="original"> and for them can be edited only passwords from the **Vault settings** section on the corresponding PC.

### Reconnect security keys
